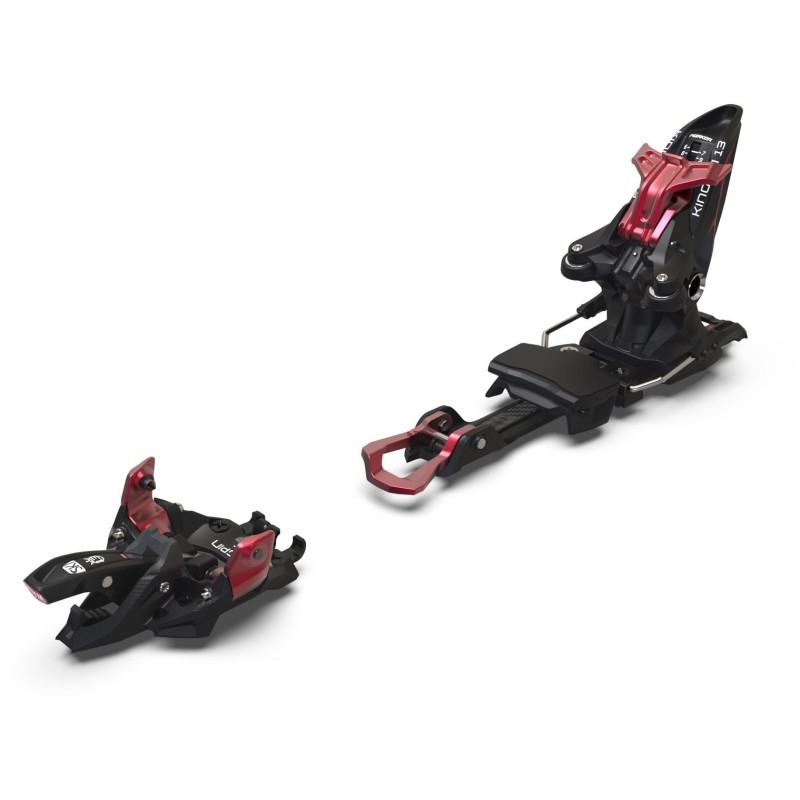

Freetouring Bindings / Marker Kingpin 13 75-100 mm (7933U1MA)

Marker Kingpin 13 75-100mm Black-Red (7933U1MA) | esqui-outlet.com/en/
Marker Kingpin 13 75-100mm Black-Red (7933U1MA) | esqui-outlet.com/en/

Freetouring Bindings / Marker Kingpin 13 75-100 mm (7933U1MA)

Regular price: €560.00
Reduced price: €329.99 Save €230.01
Tax included

The Marker Kingpin 13 (ref. 7933U1MA, 75–100 mm brake in Black / Red finish) is the equivalent of a rear-wheel-drive sports coupé tuned for road and track: a hybrid freetouring binding that revolutionized ski touring by combining an ultra-light, efficient pin toe piece for climbing with a rigid, race-level alpine heel piece for descending. Equipped with an ISI Toe technical toe piece with carbon reinforcement, an alpine Kingpin Heel with direct power transmission, ergonomic risers (0°, 7°, and 13°), and a DIN range of 6 to 13, it is the benchmark choice for skiers seeking agility on the ascent and solid, powerful, uncompromising retention on the descent.

ADD TO CART
Marker

Preparation time: 24h

Delivery time: 24/72h from the moment of dispatch.

Touring Ski Bindings

In the design of high-performance sports vehicles, optimizing weight on the front axle while maintaining an oversized, rigid rear end is the secret to achieving agile steering without losing traction or lateral support in fast turns. The Marker Kingpin 13 masterfully brings this setup to aggressive ski touring. For the ascent, the ISI Toe tech toe reduces unsprung mass and makes boot entry easier thanks to its rubberized stop and assisted geometry, allowing smooth touring with an ergonomic pivot angle.

When switching to downhill mode via its proven mechanical lever, the binding reveals its true sporty character: unlike traditional rear pin bindings, it features the genuine Kingpin Heel, an alpine-style heel unit with wide jaws that press the rear boot welt toward the base. This design eliminates any play or delay in power transfer, sending all force directly to the edges for high-speed turns and safely landing jumps. It features active flex compensation to maintain consistent release under load, integrated titanium climbing aids at 0°, 7° and 13° that can be easily switched with a pole, a 75-100 mm brake, and TÜV DIN ISO 13992:2014 certification for high-safety touring bindings.

Technical specifications

  • Brand and model: Marker Kingpin 13 (with integrated 75-100 mm brake).

  • Manufacturer reference: 7933U1MA.

  • Color / Finish: Black / Red.

  • Binding type: Hybrid Touring / Freetouring binding (pin Tech toe for uphill + direct-pressure alpine heel unit for downhill).

  • Set weight: ~690 g per binding (~1380 g per pair with 75-100 mm brakes included).

  • Brake width: 75 - 100 mm (optimal for touring and freetouring skis with waist widths from 75 mm to 100 mm).

  • Release range (DIN): 6.0 - 13.0 (calibrated for advanced, expert skiers and aggressive freetouring lines).

  • Toe piece: Carbon-fiber-reinforced ISI Toe, with two longitudinal springs and a quick insert-positioning guide.

  • Heel unit: Kingpin Heel (alpine heel unit with oversized cams for lossless power transmission).

  • Uphill/downhill mechanism: Manual switching lever beneath the base for secure mode changes.

  • Climbing aids: 0°, 7° and 13° positions, easily switchable using the pole grip or basket.

  • Heel unit fore-aft adjustment range: 25 mm of travel on the rail (+/en/?controller=category 12.5 mm).

  • Height above ski (Stand Height): 21.5 mm (low center of gravity for immediate snow contact).

  • Flex compensation: Active dynamic heel-unit travel that follows ski flex.

  • Safety approval: TÜV certification in accordance with the international DIN ISO 13992:2014 standard (ski touring bindings).

  • Boot compatibility: Ski touring and freetouring boots fitted with front metal Tech / Pin inserts and a standard rear sole welt (ISO 9523 Touring with Tech inserts).
