In the design of versatile all-terrain platforms, widening the chassis track while optimizing component weight makes it possible to channel high loads over uneven surfaces without overburdening the overall mass of the assembly. The Marker F12 Tour EPF brings this solution to versatile touring and freeride skiing. Its design is based on the Extended Power Frame (EPF) standard: a drilling and mounting pattern with a widened 46 mm track width that multiplies leverage on medium and wide skis, neutralizing torsion and transmitting force directly to the edges.

Unlike modern hybrid or ultralight bindings, this model does not require or use pin inserts in the boot. The uphill function is activated through its proven integral pivoting plate system (Frame Binding): by unlocking the Hike & Ride Switch lever protected beneath the boot sole, the entire binding assembly is released at the rear to pivot from the front axis. To tackle steep ascents, it features titanium climbing aids that can be switched on the move with a pole at angles of 0°, 7° and 13°. When the assembly is locked for descent, the lightweight Triple Pivot Light 2 toe piece (with a horizontal transverse spring and metal upper Anti Ice Rail profile) works together with the Hollow Linkage 2 heel piece with a hollow aluminum axle, ensuring firm retention and consistent dynamic elasticity against sudden impacts. Equipped with a height-adjustable sliding AFD anti-friction plate, it is fully compatible with traditional alpine boots (ISO 5355), GripWalk soles (ISO 23223), and conventional touring boots with welts (ISO 9523).

Technical specifications

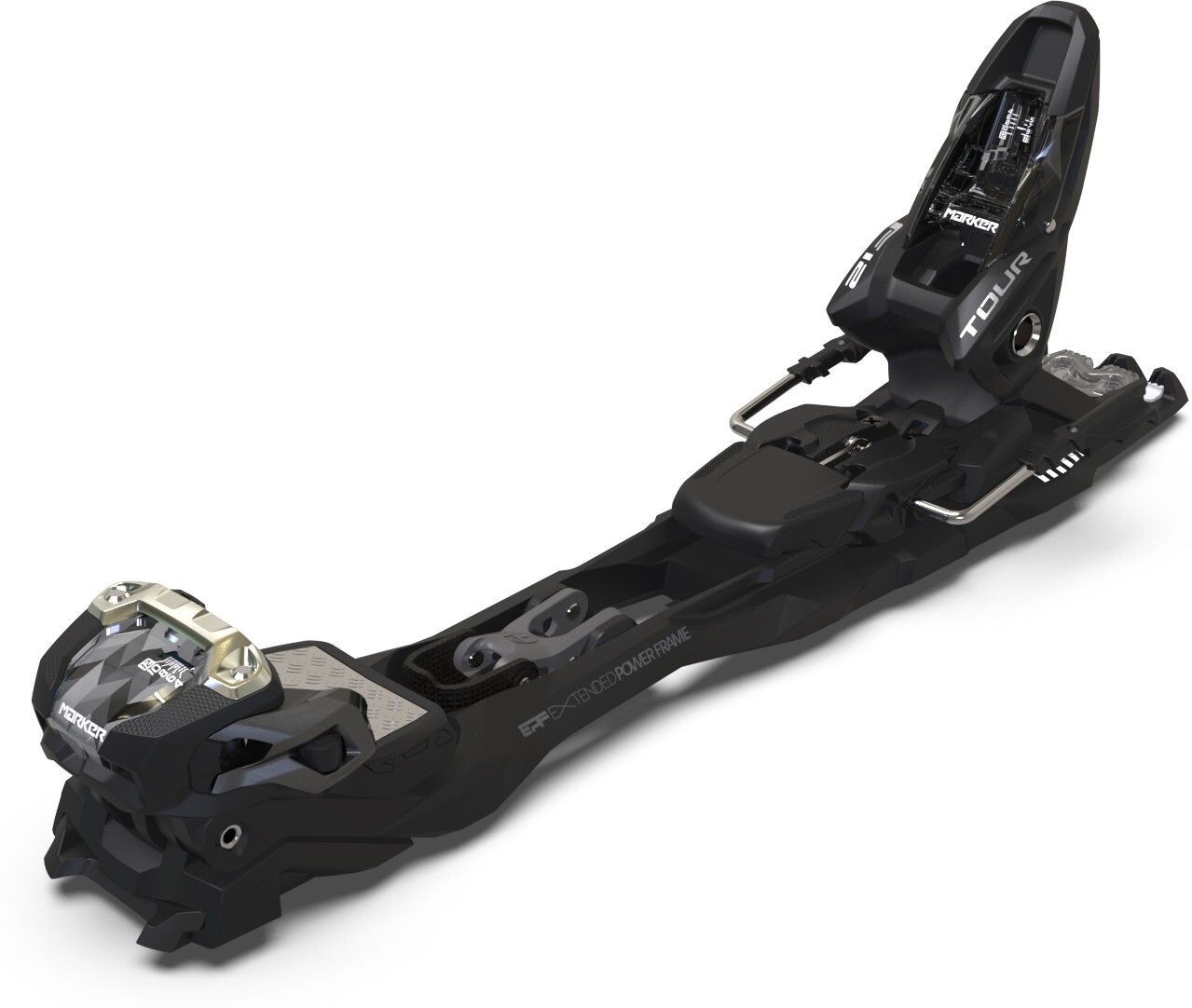

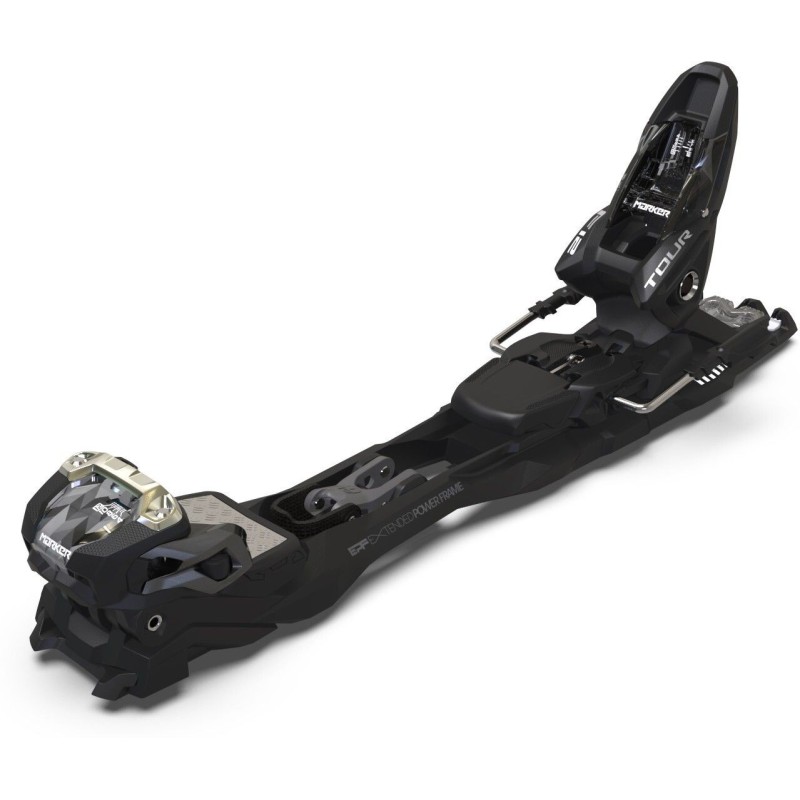

• Brand and model: Marker F12 Tour EPF (Size L, with integrated 100 mm brake).

• Manufacturer reference: 7816W1LS.

• Size / Sole length range: Size L (adjustment for boot sole lengths between 305 mm and 365 mm).

• Color / Finish: Black / Anthracite.

• Binding type: Touring / Freeride binding with pivoting plate chassis (Frame Binding). NOT HYBRID / DOES NOT USE TECH PINS.

• Uphill operation: Integral pivoting plate mechanism (lifts boot and binding together with each step).

• Assembly weight: ~1100 g per binding (~2200 g per pair with 100 mm brakes fitted).

• Brake width: 100 mm (ideal for touring and freeride skis with waist widths from 85 mm to 100 mm).

• Release range (DIN): 4.0 - 12.0 (calibrated for intermediate, advanced, and expert skiers).

• Structure and chassis: EPF – Extended Power Frame (46 mm mounting width for torsion-free power transmission).

• Toe piece: Triple Pivot Light 2 Toe (lightweight horizontal transverse spring with structural reinforcement).

• Heel piece: Hollow Linkage 2 Heel (alpine heel piece with hollow aluminum axle for maximum lightness and elastic retention).

• Integrated scraper: Anti Ice Rail on the upper part of the toe piece for removing ice from the sole.

• Uphill mechanism: Hike & Ride Switch (mechanically locked switching lever beneath the boot to prevent accidental opening during descent).

• Climbing aids: Titanium Climbing Aids (0°, 7°, and 13° positions easily switchable with the pole grip).

• Height above ski (Stand Height): 36 mm (aggressive leverage angle for maximum pressure on the edges).

• Anti-friction plate: Height-adjustable stainless-steel AFD Gliding Plate.

• Boot compatibility (traditional retention via sole welts, NOT pins):

  • Traditional alpine ski boots (ISO 5355 standard).

  • Boots with GripWalk soles (ISO 23223 standard).

  • Standard touring ski boots with compliant front and rear welts (ISO 9523 standard).

  • Notice: Incompatible with ultralight race or pure touring boots that lack compliant front and rear welts.
