Touring / Freetouring Bindings Marker Kingpin 10 Demo 75-100 mm (7734V1MA)

Regular price: €600.00
Reduced price: €289.99 Save €310.01
Tax included

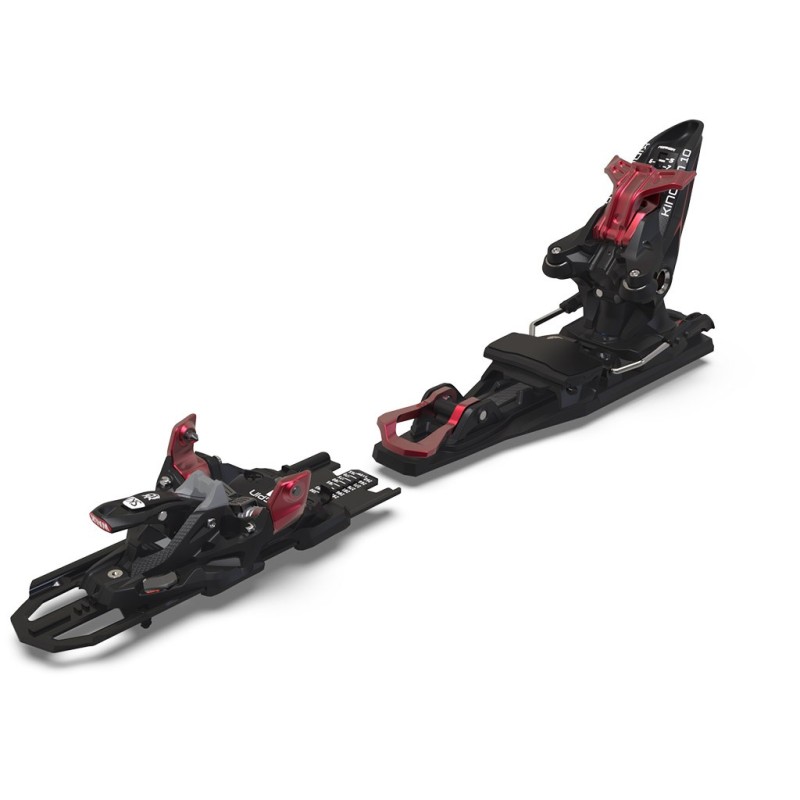

The Marker Kingpin 10 Demo (ref. 7734V1MA, 75-100 mm brake in Black / Red finish) is the equivalent of a sporty two-seater test vehicle with quick, tool-free cockpit adjustment: the hybrid freetouring binding calibrated on a DIN 4-10 scale and mounted on multi-sole sliding rails (265-365 mm) for test centres and technical rental. It combines the lightness of a Tech pin toe piece for effortless climbing with the direct power transmission and vertical retention of its alpine Kingpin heel unit for descending, optimised for versatile touring skis with waists from 75 to 100 mm.

ADD TO CART
Marker

Preparation time: 24h

Delivery time: 24/72h from the moment of dispatch.

Touring Ski Bindings

In motorsport test fleets, having a tool-free adjustable cockpit that maintains the chassis’s structural rigidity is essential for switching drivers without losing tenths of a second to mechanical play. The Marker Kingpin 10 Demo brings this practicality to ski touring and freetouring. During the ascent, the technical ISI Toe with carbon-fiber reinforcement reduces unsprung weight and makes stepping in easier thanks to its rubberized stop, enabling a natural, efficient stride with minimal muscular effort.

Its distinguishing feature is the Demo platform on pre-mounted rails: both the toe and heel units slide along millimeter-precise guides with a manual quick-lock system, allowing any boot with a sole length between 265 and 365 mm to be adjusted in seconds without re-drilling the ski. For the descent, the alpine Kingpin Heel presses the boot heel with wide jaws that eliminate unwanted flex, transmitting power directly to the edges without the usual losses of conventional touring pins. It incorporates active flex compensation, 0°, 7° and 13° climbing risers easily switched with the pole, a pre-mounted 75-100 mm brake, and official TÜV DIN ISO 13992:2014 safety certification.

Technical parameters

  • Brand and model: Marker Kingpin 10 Demo (with 75-100 mm brake and quick-rail plate).

  • Manufacturer reference: 7734V1MA.

  • Color / Finish: Black / Red.

  • Binding type: Hybrid Touring / Freetouring binding in Demo / Rental version (Tech pin toe for ascents + cam-operated alpine heel for descents).

  • Adjustment system (Demo): Rail-mounted sliding plates with tool-free quick lock (sole-length range: 265 mm to 365 mm).

  • Set weight: ~870 g per binding (~1740 g per pair with demo rails and 75-100 mm brakes installed).

  • Brake width: 75 - 100 mm (ideal for touring and freetouring skis with waist widths from 75 mm to 100 mm).

  • Release range (DIN): 4.0 - 10.0 (calibrated for lightweight, medium-weight, or intermediate/advanced skiers).

  • Toe unit: ISI Toe with carbon-fiber reinforcement, longitudinal springs, and quick-entry stop, mounted on a sliding rail.

  • Heel unit: Kingpin Heel (alpine architecture with wide jaws for direct transmission on the demo rail).

  • Uphill/downhill mechanism: Protected manual switching lever beneath the base for safe mode changes.

  • Climbing risers: 0°, 7° and 13° positions, easily switched using the pole grip or basket.

  • Height above ski (Stand Height): 25 mm (optimized profile with integrated demo rail).

  • Flex compensation: Active dynamic heel travel that follows ski deformation under load.

  • Safety certification: Official TÜV certification in accordance with international DIN ISO 13992:2014 standard (ski touring bindings).

  • Boot compatibility: Ski touring and freetouring boots equipped with front metal Tech / Pin inserts and a compliant heel welt (ISO 9523 Touring with Tech inserts).
