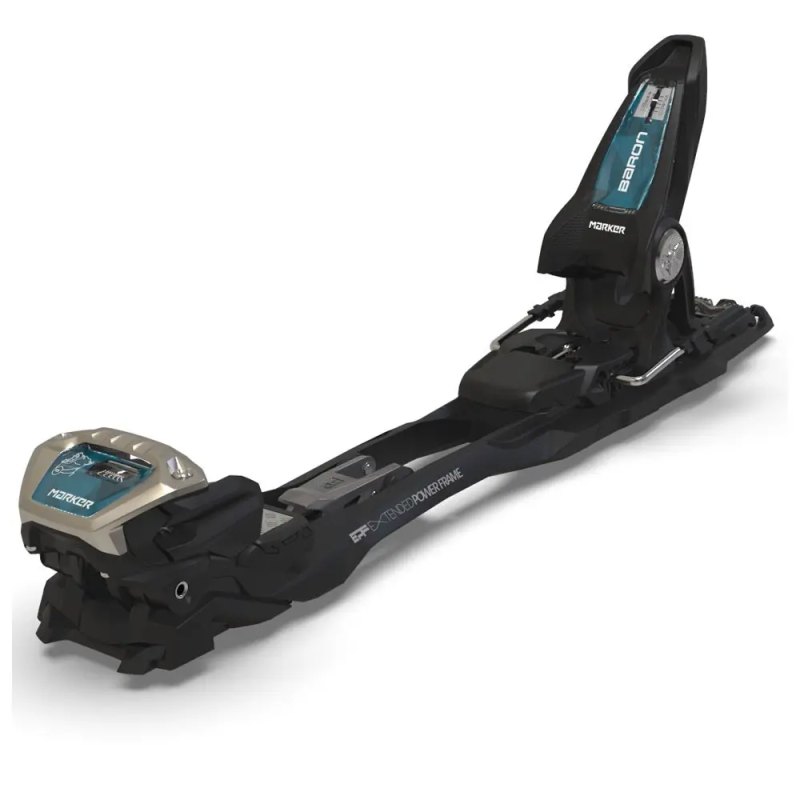

Freeride Bindings with Rocker Chassis Marker Baron EPF 13 Size L (110 mm)

Marker Baron EPF 13 Size L 110mm (7516U1LA) | esqui-outlet.com/en/
Marker Baron EPF 13 Size L 110mm (7516U1LA) | esqui-outlet.com/en/

Freeride Bindings with Rocker Chassis Marker Baron EPF 13 Size L (110 mm)

Regular price: €500.00
Reduced price: €219.99 Save €280.01
Tax included

The Marker Baron EPF 13 (ref. 7516U1LA, Size L 305-365 mm with 110 mm brake) is the equivalent of a high-end sporty all-terrain vehicle with a mechanical low-range gearbox: an oversized, reliable binding designed to withstand aggressive descents with the structural rigidity of an alpine binding while allowing on-foot approaches off-piste. Important technical note: this binding features a traditional pivoting chassis (Frame Binding); it is NOT a hybrid binding and does NOT use Tech pins for either climbing or descending. Ascents are made by pivoting the entire plate chassis. Equipped with the widened Extended Power Frame (EPF) platform, Triple Pivot Elite 3 toe piece, Inter Pivot 3 heel piece, and a DIN range from 4 to 13, it is the perfect solution for skiers with long-sole boots seeking uncomplicated solidity.

Brake width
ADD TO CART
Marker

Preparation time: 24h

Delivery time: 24/72h from the moment of dispatch.

Bindings

In high-performance off-road motorsport, a widened track width and direct chassis mounting points ensure straight-line stability and precise guidance over rough terrain. The Marker Baron EPF 13 applies this architecture to all-mountain touring and versatile freeride skiing. Its structure is based on the Extended Power Frame (EPF) system: a widened mounting platform with 46 mm screw spacing that maximizes lateral leverage over wide freeride skis, minimizing torsional losses and transmitting pressure directly to the edges.

Unlike modern hybrid models, this system does not require pin inserts in the boot. The touring function is articulated through its full pivoting plate mechanism (Frame Binding): when the Hike & Ride Switch safety lever, safely positioned beneath the sole, is activated, the entire binding structure releases at the rear to pivot from the front axis. For uphill slopes, it features integrated titanium climbing aids that are easy to operate with a ski pole at 0°, 7°, and 13°. For downhill skiing, the Triple Pivot Elite 3 toe piece (with horizontal transverse spring and upper metal plate for scraping off ice) combines with the Inter Pivot 3 heel piece, delivering uncompromising retention and superior elastic travel to prevent accidental releases over bumps or jump landings. Its height-adjustable sliding AFD plate ensures multi-standard compatibility with traditional alpine sole boots (ISO 5355), GripWalk (ISO 23223), and standard touring boots with welts (ISO 9523).

Technical specifications

  • Brand and model: Marker Baron EPF 13 (Size L, with pre-mounted 110 mm brake).

  • Manufacturer reference: 7516U1LA.

  • Size / Sole length range: Size L (adjustment for boot sole lengths between 305 mm and 365 mm).

  • Color / Finish: Black / Anthracite / White.

  • Binding type: Freeride binding with pivoting plate chassis (Frame Binding). NOT HYBRID / DOES NOT USE TECH PINS.

  • Uphill operation: Full pivoting plate mechanism (raises the boot and binding together with each step).

  • Set weight: ~1395 g per binding (~2790 g per pair with 110 mm brakes mounted).

  • Brake width: 110 mm (designed for skis with a 100 mm to 110 mm waist).

  • Release range (DIN): 4.0 - 13.0 (calibrated for upper-intermediate, advanced, and expert skiers).

  • Structure and chassis: EPF – Extended Power Frame (46 mm track width for edge transmission on wide skis).

  • Toe piece: Triple Pivot Elite 3 Toe (horizontal transverse spring with reinforced upper profile).

  • Heel piece: Inter Pivot 3 Freeride Heel (high-performance heel piece with magnesium insert for maximum mechanical stiffness).

  • Sole scraper: Anti Ice Rail integrated into the toe piece to remove packed snow and ice.

  • Touring mechanism: Hike & Ride Switch (shift lever locked beneath the boot for complete downhill safety).

  • Climbing aids: Titanium Climbing Aids (0°, 7°, and 13° positions easily switchable with the ski pole grip).

  • Height above ski (Stand Height): 36 mm (increased leverage angle for direct edge pressure).

  • Anti-friction plate: Height-adjustable stainless steel AFD Gliding Plate.

  • Boot compatibility (traditional retention via sole lugs, NOT pins):

    • Traditional alpine ski boots (ISO 5355 standard).

    • Boots with GripWalk soles (ISO 23223 standard).

    • Standard touring ski boots with compliant front and rear welts (ISO 9523 standard).

    • Warning: Incompatible with ultralight race or pure touring boots that lack compliant front and rear welts.
